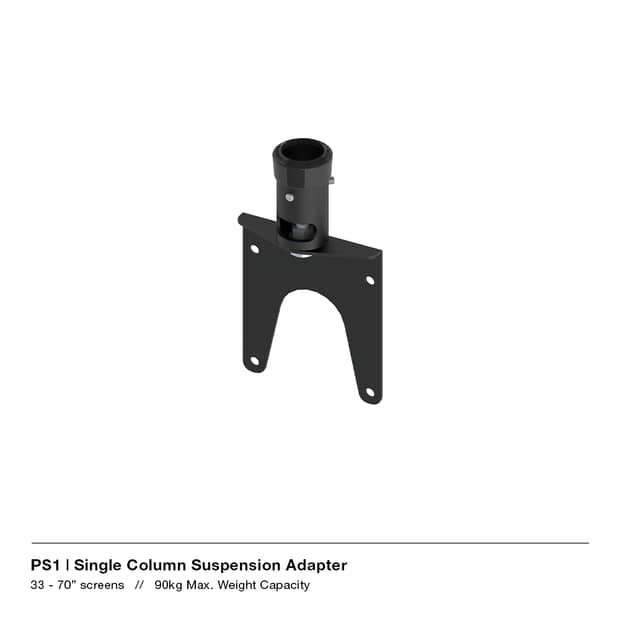

PS1 | Single Column Suspension Adapter

INSTALLATION COMPONENTS THAT ALLOW YOU TO PRODUCE/COMPLETE YOUR OWN COLUMN MOUNTED SOLUTION.

Part of UNICOL's modular systems, the PS1 adapter secures your choice of screen mount to a single column. Designed to suspend 33-70" screens, this adapter features 360* swivel to allow you to adjust even after installation. The cable entry point helps to keep cabling neartly stowed away through the column and subsequently the ceiling plate, keeping your installation tidy.

Compatible with any column, and the universal or dedicated mount range. Twin column versions also available.

This solution has a maximum weight capacity of 90kg. Please see specification below for more information.

For custom solutions click here

£64.30
*All prices exclude VAT

Downloads

PS1 | Single Column Suspension Adapter


Drawing


Drawing


Model



Features

Standard
360* swivel

Cable entry allowed for

Suitable for 33-70” screens

Available in Sinterflex Black as standard

Adaptable
Back-to-back versions available

Fully Bespoke

Our Adapter Solutions can be completely customised to suit your requirements. The Special Projects Design department are able to produce conceptual and production versions for many varied applications.

Please contact [email protected] to discuss.

Specs

PS1 | Single Column Suspension Adapter

Screen Size: 33" - 70"
Vesa Size: n/a - n/a
Max Weight Capacity: 90kg
Height: 331.5mm
Width: 180mm
Depth: 70mm
Weight: 1.80kg
