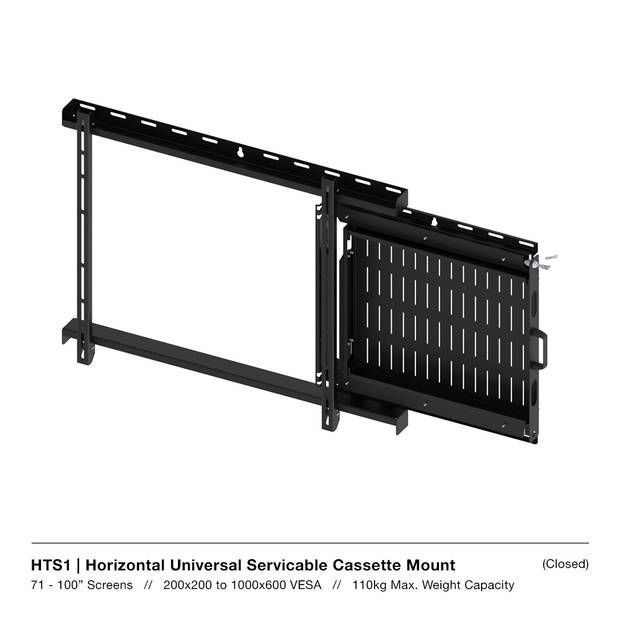

HTS1 | VertiSlide Horizontal Universal Serviceable Cassette Mount

STORE DEVICES NEATLY BEHIND THE SCREEN WITH A SLIDING RACK

The HTS1 allows users to swap-in, swap-out any old or broken devices with ease and efficiency. The 19” serviceable cassette tray allows you to separate it from the body of the mount so that devices can be assembled and attached prior to installation/maintenance. Each cassette features a series of slots to ensure devices can be easily fixed, no matter their size.

Built-in cable management keeps cabling hidden and tidy regardless of whether the cassette is open or closed. When the installation is finished, you can simply lock the tray to ensure devices remain safe and secure.

This solution is suitable for a maximum weight capacity of 110kg and covers VESA's 200x200 to 1000x600mm. Please check ‘SPECS’ below for more details.. Please also consider your cabling - see below for Cable Management Chain specifications.

For custom solutions click here

£599.30
*All prices exclude VAT

Downloads

HTS1 | VertiSlide Horizontal Universal Serviceable Cassette Mount


Drawing


Drawing


Model




Instructions

Features

Standard
Tidy cable management

19” side-slide cassette rack tray

Separate equipment tray for pre-assembly

Built in security locks keeps devices safely stored away

Cable Management Chain: 30w x 15h mm (Internal dims) with minimum bend radius 28mm

Adaptable
Available in dedicated or universal versions

Under-Desk mount versions available

Lift-Lower version also available

Fully Bespoke

Our VertiSlide Serviceable Cassette Mounts can be completely customised to suit your requirements. The Special Projects Design department are able to produce conceptual and production versions for many varied applications.

Please contact [email protected] to discuss.

Specs

HTS1 | VertiSlide Horizontal Universal Serviceable Cassette Mount

Screen Size: 71" - 110"
Vesa Size: 200x200 - 1000x600
Max Weight Capacity: 110kg
Height: 845mm
Width: 1566 - 2169mm
Depth: 95mm
Weight: 25.00kg
